Description

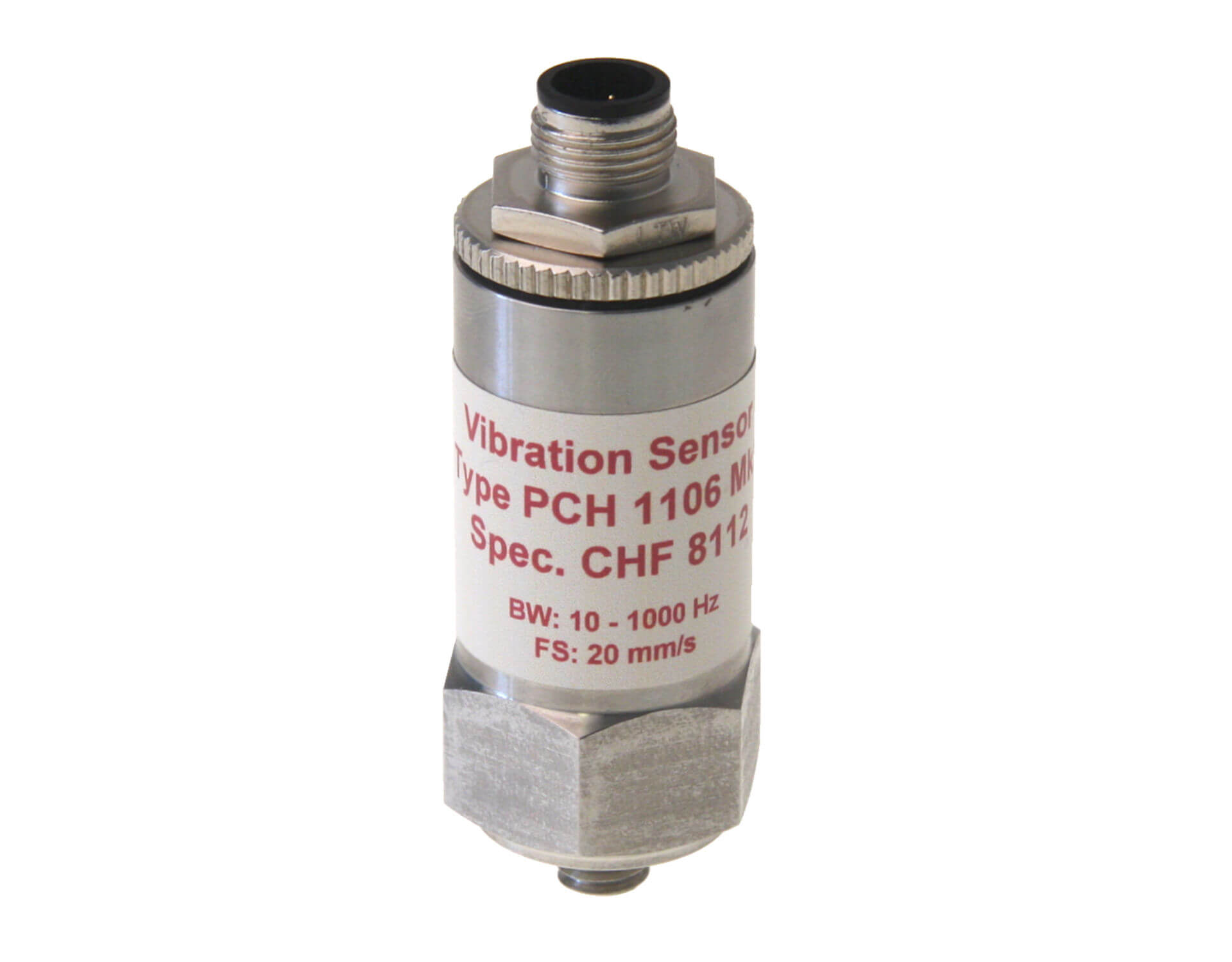

PCH 1106 Mk2 provides continuous monitoring of rotating machinery. It can also be used for periodic measurements by connecting a portable meter such as the PCH 1033, which displays the actual vibration level at the point of a permanently mounted PCH 1106 Mk2.
When the sensor is connected to a PLC or CTS system, it provides active protection of the machine, which reduces the risk of damage to the machine and, consequently, reduces the maintenance costs.
PCH 1106 Mk2 can be delivered with a bearing temperature output measuring the bearing housing or a raw time waveform output.
The PCH 1106 vibration sensor comes in two versions, a standard ISO 10816-3 version for measuring vibrations and a T-version for measuring vibrations and temperature. Both offers a 4-pin M12 top exit connector:
Standard version: PCH 1106 for ISO 20816-3
The standard version offers simple protection against machine damage by measuring vibrations.
PCH 1106 T (temperature and vibration)
If your application requires temperature measurements as well as vibration monitoring, use the PCH 1106 T. Both vibration and surface temperature measurements are provided through dual 4-20 mA outputs, making a separate Pt100 transmitter redundant.
