Description

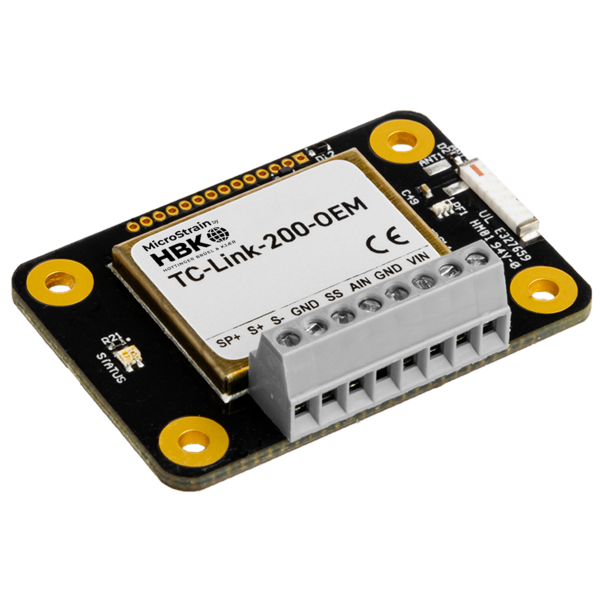

The TC-Link-200-OEM’s small form factor, wide input range, and selection of antenna options make this product easy to integrate into many applications.
Sensor Input
- 1 input channel supporting thermocouples, resistance thermometers (RTDs), and thermistors
- Onboard temperature calculation using NIST 9th order polynomial
- Onboard cold-junction compensation
- Digital filtering for up to 120 dB rejection of 50 and 60 Hz noise
- High accuracy and low noise
- Open-circuit (burnout) detection
- Differential voltage range from +/- 19.5mV to +/- 1.25 V
- Compatible thermocouples types:
- J, K, N, R, S, T, E, B
- Compatible RTDs:
- PT-10, PT-50, PT-100, PT-200, PT-500, PT1000
- Compatible thermistors:
- 44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400
Operation
- Report sensor temperature, voltage, or resistance
- Up to 128 Hz sampling rate
- Continuous, periodic burst, or event-triggered operation
- LXRS protocol allows lossless data collection, scalable network size, and node synchronization of ±50 µs
- Datalogging up to 8 million data points
- Wireless range up to 1km
- Duty cycle sensor excitation for low power operation, well-suited for battery powered applications
Package
- Power with 3.3 to 30 V
- –40 to +105 °C operating temperature range
- Humiseal 1B31 Conformal Coating
- 4 mounting holes sized for 2-56 UNC
- Optional aluminum base
- Antenna options include on-board, or U.FL connector
