MicroStrain MV5-AR Inertial Sensor

MicroStrain MV5-AR Inertial Sensor

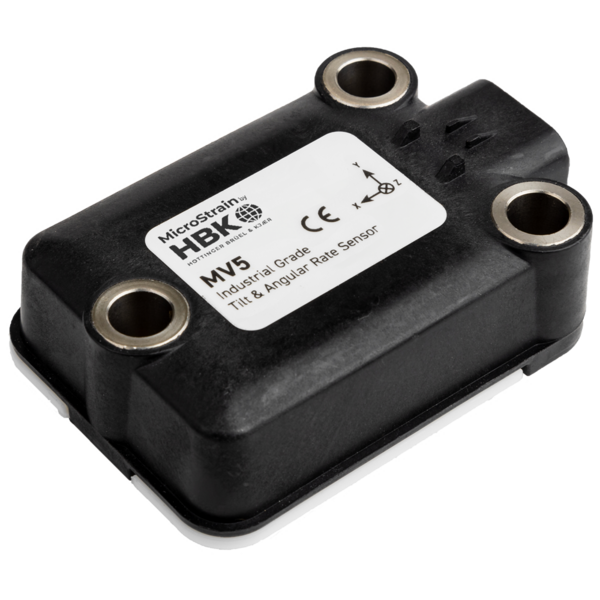

The MV5-AR is an industrial grade IMU/tilt sensor that brings a new level of precision to measurements of dynamic inclination, acceleration and angular rate in challenging environments such as those encountered by heavy-duty construction, off-highway, agriculture, and trucking industries.
The MV5-AR utilizes the power of a sophisticated Auto-Adaptive Extended Kalman Filter (EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting in a true reading of inclination under all conditions.

Its power and mounting flexibility make it a single-part solution for a variety of vehicle applications.

Variants:

  • 6243-7790: SAE J1939 Protocol
  • 6243-7792: CANopen Protocol
Categories: , , Tags: , , , Brand:

Description

Sensor

  • High performance accelerometer
    • 85 µg/√Hz
    • ±20 g range
  • High performance Gyroscope
    • 1000°/S
  • Attitude accuracy ±0.2°
  • Attitude resolution 0.05°
  • Fully calibrated and temperature compensated
    –40 to +85°C

Operation

  • Adjustable sampling rates up to 500Hz (100Hz default)
  • Triple power flexibility:
    • 5V regulated
    • 12V unregulated vehicle bus
    • 24V unregulated vehicle bus
  • Single CAN command adjusts for any mounting orientation
  • Fully compliant to strict automotive and off-highway test standards

Package

  • PBT Thermoplastic, Reinforced, Hermetically sealed
  • Ingress protection IP68, IP69K
  • Highly compact and low profile
    • 80.0mm x 55.0mm x 24.0mm
    • 110.5 grams
  • CANopen bus interface
  • RoHS, REACH, CE, UKCA
