Description

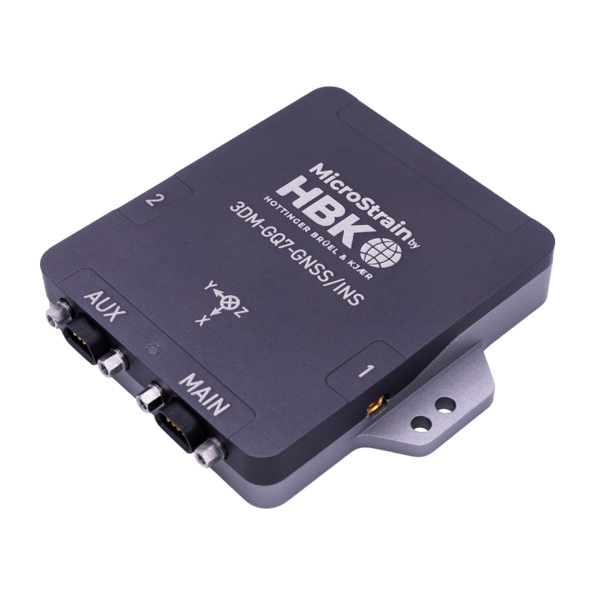

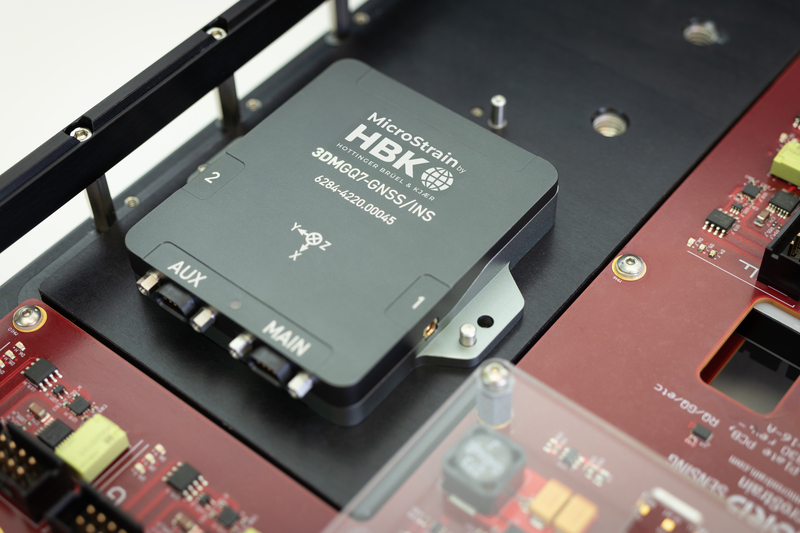

The MicroStrain 3DM-GQ7-GNSS/INS is an all-in-one navigation solution featuring centimeter-level position accuracy. It is our first dual-antenna, RTK enabled INS designed for outstanding performance, even in unpredictable conditions. It is equipped with dual multiband GNSS receivers, low noise and low drift MEMS inertial sensors, and a robust adaptive Kalman filter.
When paired with our 3DM-RTK Modem and SensorCloud RTK corrections service, the 3DM-GQ7-GNSS/INS is the best single-vendor RTK navigation solution available.
Sensor
- Up to 1 cm + 1 ppm positional accuracy with RTK
- Multi-frequency GNSS receivers provide 1.2m single point L1/L2 position accuracy
- Multi-constellation receivers with 184 tracking channels each allow for rapid signal acquisition and robust signal tracking in challenging GNSS environments
- Dual GNSS antenna heading with 0.2° heading accuracy that is immune to magnetic disturbances
- Tactical grade IMU with <2°/hr bias instability provides exceptional position accuracy during GNSS outages
- 0.05° pitch/roll accuracy
Operation
- Accepts standard RTCM real-time kinematic (RTK) corrections
- Adjustable sampling rates up to 1KHz
- 34 state auto-adaptive EKF
- Independently configurable IMU, GNSS, EKF outputs
- Forward compatible MIP Protocol optimizes bandwidth
- SensorConnect software for configuration, control, display, and logging
- MSCL open source API for easy integration
Package
- Anodized Aluminum
- Precision alignment features
- Highly compact and low profile
- 76 mm x 68.6 mm x 13.3 mm
- 78 grams
- USB and RS-232 interfaces
- –40 to +85°C operating temperature range
