MicroStrain 3DM-CX5-AHRS Inertial Sensor

MicroStrain 3DM-CX5-AHRS Inertial Sensor

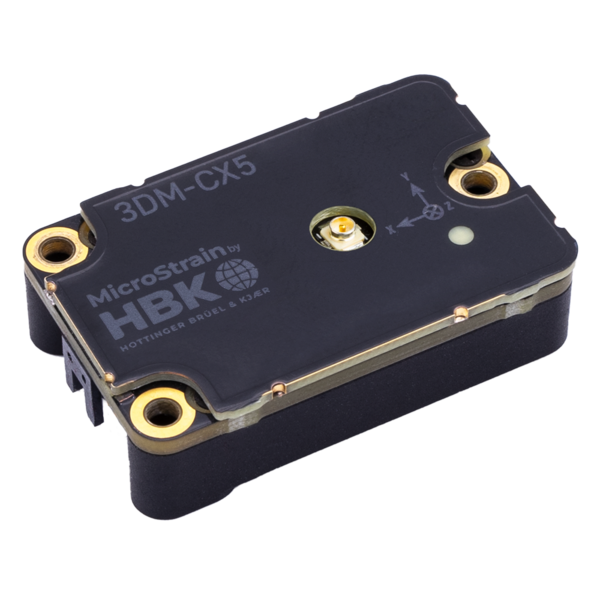

The MicroStrain 3DM-CX5-AHRS is the smallest and lightest high performance AHRS with an Adaptive Kalman Filter available. It features a fully calibrated and temperature compensated triaxial accelerometer, gyroscope, and magnetometer to achieve the optimum combination of measurement qualities under all dynamic conditions. The dual on-board processors run an exclusive Auto-Adaptive Extended Kalman Filter (EKF) for outstanding dynamic attitude estimates, making it ideal for a wide range of applications, including platform stabilization, robotics, and vehicle health and usage monitoring.

Categories: , , Tags: , , , Brand:

Description

Sensor

  • High Performance Accelerometer
    • 25 µg/√Hz (8g option)
    • 80 µg/√Hz (20g option)
  • Super-stable Gyro
    • 8 dph in-run bias (-40 to +85°C)
    • Offset temperature hysteresis 0.05°/s
    • ARW 0.3°/√hr
  • Pitch-roll static/dynamic accuracy ±0.25°/0.4°

Operation

  • IMU sampling rate up to 1000Hz
  • Auto-adaptive EKF output rate up to 500Hz
  • Independently configurable IMU and EKF outputs
  • Forward compatible MIP Protocol optimizes bandwidth
  • SensorConnect software for configuration, control, display, and logging

Package

  • CNC Anodized Aluminum
  • Precision alignment features
  • Highly compact and low profile
    • 38.0 mm x 24.0 mm x 10.7 mm
    • 12.0 grams
  • USB and TTL UART interface (up to 921600 BAUD)
  • –40 to +85 °C operating temperature range

Download Datasheet
