Description

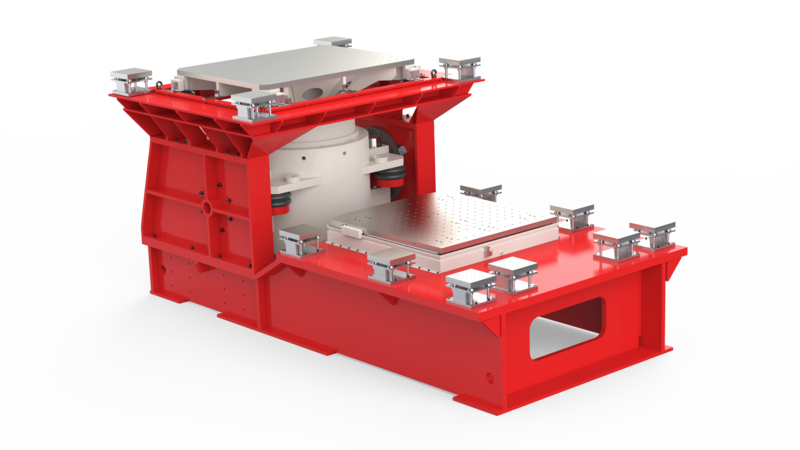

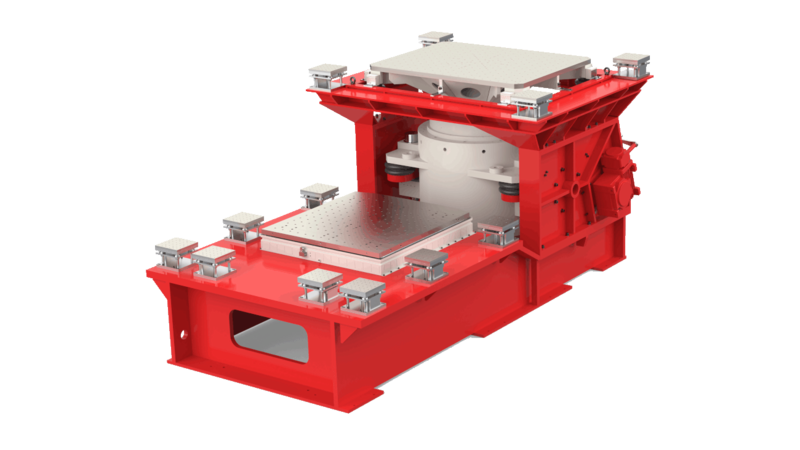

This reliable and proven shaker platform is ideal for vibration and shock testing of Electric Vehicle (EV) battery modules and packs, e-axles and e-drivetrains.
The LDS V9940 is suitable for high-acceleration shock tests, as well as for testing with sinusoidal, random, and transient excitations. Providing high Half Sine Shock force, the water-cooled shaker is capable of testing the most demanding payloads.

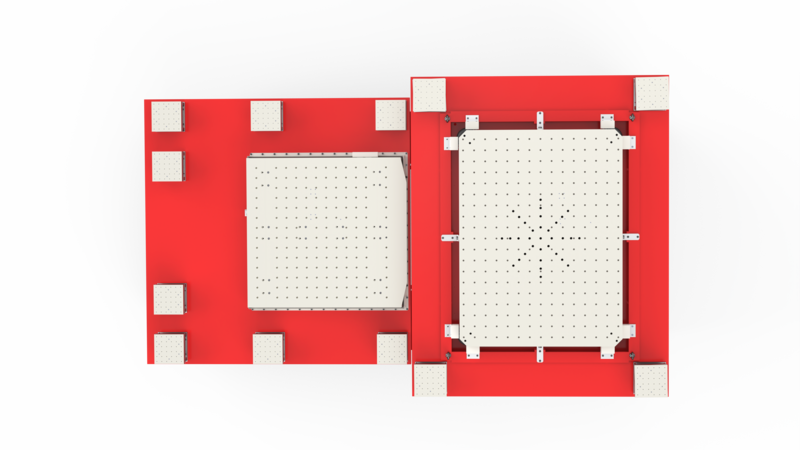

The design includes optimised table designs using innovative pedestal assemblies to minimise moving masses, greatly improving performance.
Sine force peak: 300 kN
Max. random force RMS: 300 kN
Max. acceleration sine peak: 100 g
Velocity sine peak: 2 m/s
Displacement continous pk-pk: 50.8 mm
Moving element mass: 254.9 kg
Usable frequency range: 5-2000 Hz
USE SCENARIOS
- Shock testing to international standards such as UN 38.3, ECE R100 and ISO 12405
- Three-axis vibration testing to screen for design weaknesses e.g. via natural resonance search
- Electrical reliability and survivability endurance testing in conjunction with thermal test parameters
- Testing under environmental stress, such as temperature, humidity, salt spray/mist
