Description

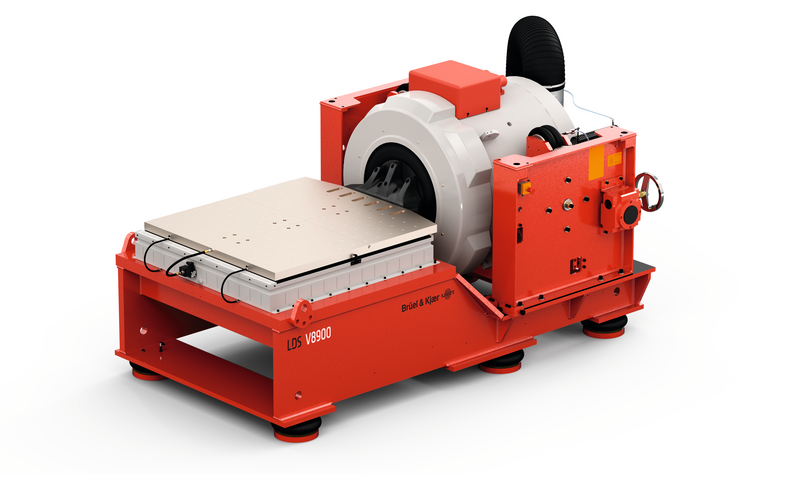

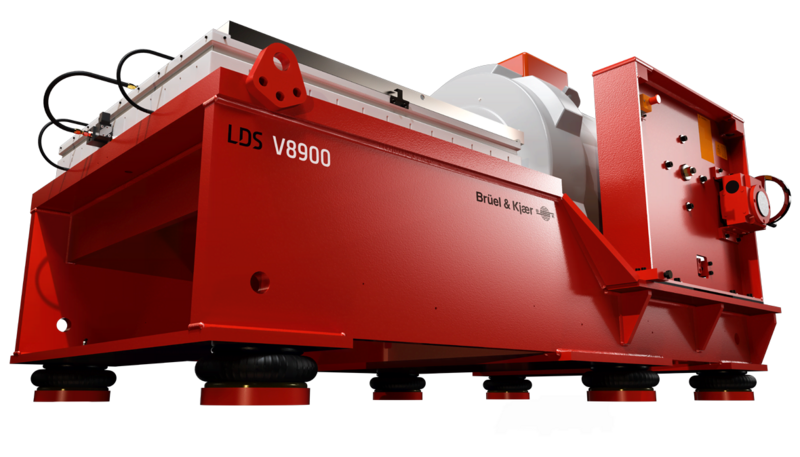

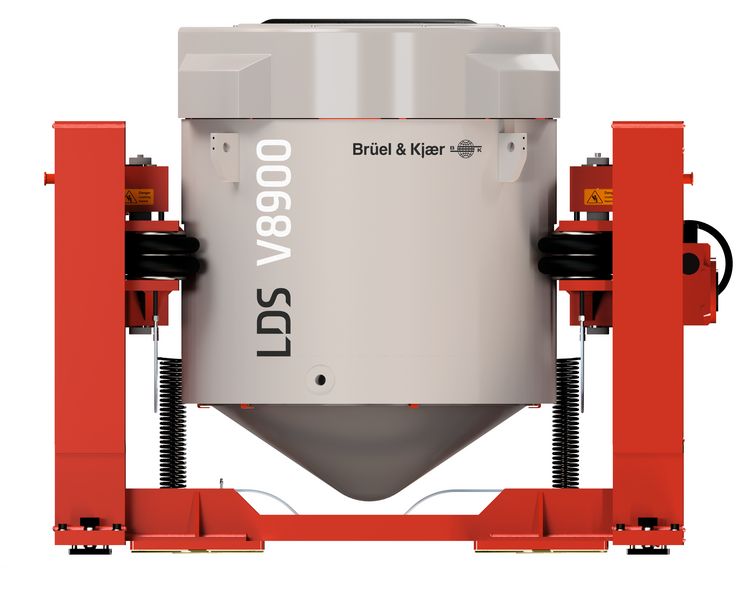

The LDS ® V8900 is ideal for the aerospace & defence and automotive industries. The shaker combines high forces, large displacement, a wide frequency range and up to 3 kN·m (2212 lb·ft) of overturning momentm making it suitable for vibration testing challenging, or unbalanced payloads and small payloads alike.
LDS® V8900 is suitable for high-acceleration shock tests, as well as for testing with sinusoidal, random, and transient excitations.
Sine Force Peak: 80 kN
Max Random Force RMS: 76.2 kN
Max acceleration sine peak: 100 g
Velocity sine peak: 1.8 m/s
Displacement continuous pk-pk: 101.6 mm
Moving element mass: 80 kg
Usable frequency range: 5 Hz – 3 kHz
USE SCENARIOS
- Three-axis testing of complete satellite systems
- Testing at very low vibration levels for payload characterization
- Low-frequency, large-displacement testing for large payloads
- Durability testing of avionics and military hardware
- Squeak and Rattle testing for the automotive sectors
- Extended vibration testing
