Description

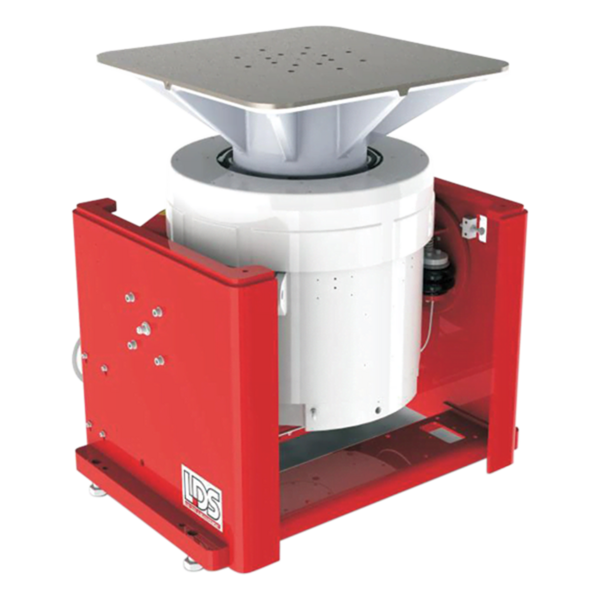

The LDS® standard range of high-quality head expanders increases the capability of existing shaker systems by allowing users to increase the effective mounting surface compared to that of the armature, and thus accommodate larger payloads.
The head expanders have been designed using advanced finite element (FE) analysis modelling techniques and are cast from a high-strength magnesium alloy with excellent damping properties.
Each head expander is supplied complete with fasteners and fitting tools for immediate testing capability.
To enable use with environmental chambers, thermal barriers are available for each size in the range. Other insert patterns can be supplied to special order.
Uses
- Increase the effective mounting surface of the shaker armature
- Accommodate larger payloads
- Increase the quantity of test items in one test to reduce testing time
- Provide increased flexibility in fixture design
Features
- High-quality aerospace-grade magnesium alloy structure with excellent damping properties
- Usable frequency range up to 2 kHz
- Standard insert pattern in M8, M10 or 3/8 UNC insert sizes
- Accurate, in-house tested dynamic performance (first mode data supplied)
- Includes full mounting kit with tools
- Corrosion resistant: Non-machined parts are painted; machined parts are coated with lubricant
- Standard off-the-shelf design for short lead time
- Full technical support
- Accelerometer options
