Description

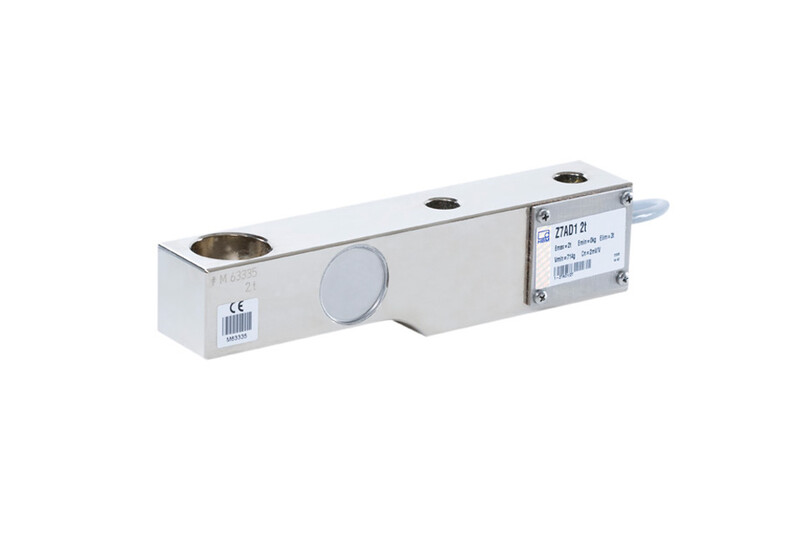

The Z7A load cells are perfectly suited for use in tank weighers and batching scales as well as for level monitoring applications.
Due to their 6-wire configuration, they provide precise measurement results of up to accuracy class C3, even with a maximum capacity as high as 10 metric tons (in compliance with OIML R60).
The robust Z7A load cells allow for easy integration owing to their large measuring body and ensure the stability required during operation. In addition, explosion proof IECEx-ATEX designs are (optionally) available.
- Accuracy classes: D1, C3
- Degree of protection: IP67
- Maximum capacity: 500 kg to 10 metric tons
Precise
- Accuracy classes: D1, C3
- Robust 6-wire configuration to compensate for resistance variations
Accurate measurement results owing to certified, precise load cell technology
Robust
- IP67 degree of protection
- Galvanized steel (measuring body)
Consistently reliable weighing
Flexible
- Different maximum capacities (500 kg, 1 t, 2 t, 5 t, and 10 t) are available
- The cable can be cut to length owing to its 6-wire configuration
- Various cable lengths are available
- Explosion proof IECEx-ATEX designs are optionally available
Versatile use
