Description
VY full bridge strain gauges (SGs) have 4 measuring grids, which are arranged so that each is offset to the next at an angle of 90°. Typical applications for full bridge SGs include measurements on tension/compression bars and torsion bars and determining shear stresses as they occur in shear beams.

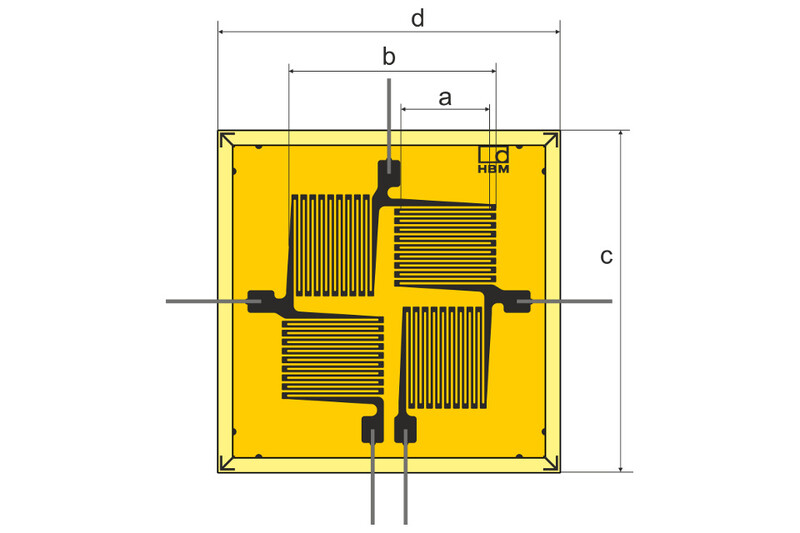

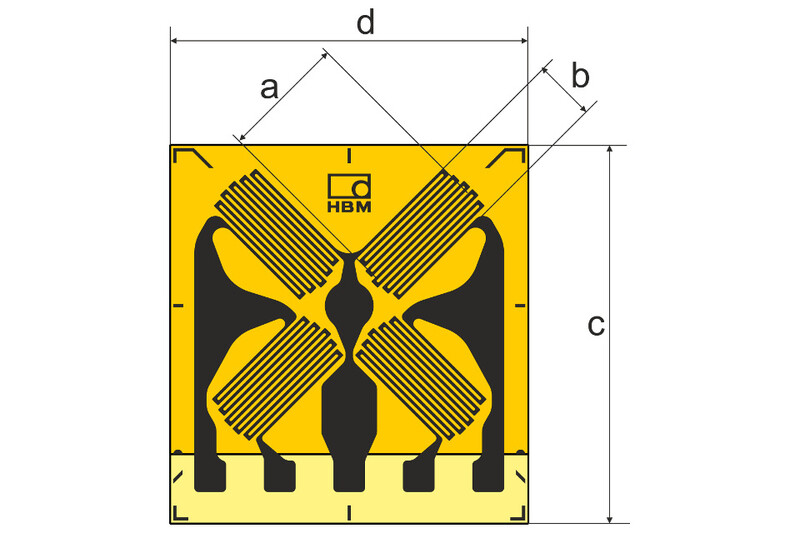

With types VY1 (0°/90° T full bridge) and VY4 (shear/torsion full bridge) we offer you strain gauges (SG) in various geometries and sizes, each available with temperature responses adapted to the following materials:
- Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); temperature matching code: 1
- Aluminum (23 ppm/K; 12.8 ppm/°F); temperature matching code: 3
- Austenitic steel (16 ppm/K, 8.9 ppm/°F); temperature matching code: 5
- Silica/composite (0,5 ppm/K; 0.3 ppm/°F); temperature matching code: 6
- Titanium and gray cast iron (9 ppm/K; 5.0 ppm/°F); temperature matching code: 7
- Plastic (65 ppm/K; 36.1 ppm/°F); temperature matching code: 8
Insert the temperature matching code in place of the placeholder “x” to get the ordering number of the strain gauge you need. Strain gauges marked with a # symbol are only available matched to aluminum, ferritic and austenitic steel
- Strain gauges available in 120 and 350 Ohms
- Measuring grid consists of constantan, measuring grid carrier is polymide
- Fast delivery for preferred strain gauge types – available from stock!
