Description
The LE11 is an encapsulated strain gauge with an IP67 degree of protection (in compliance with the chemical resistance of the adhesives). A 1-meter-long stranded connection wire with fluoropolymer insulation is included in the scope of supply. The LE11 strain gauge is encapsulated in a special plastic material and is, therefore, moisture proof and resistant against chemicals (with the exception of highly concentrated acids such as sulfuric or nitric acid). The LE11 comes with a 2-wire or 4-wire connection. The nominal (rated) resistance is 350 ohms and the temperature response is adapted for steel.
High degree of protection
- IP67 protection
- Full encapsulation in special plastic material
Moisture proof and resistant against chemicals
Signal stability
- Encapsulation with stranded wire
- Stainless steel

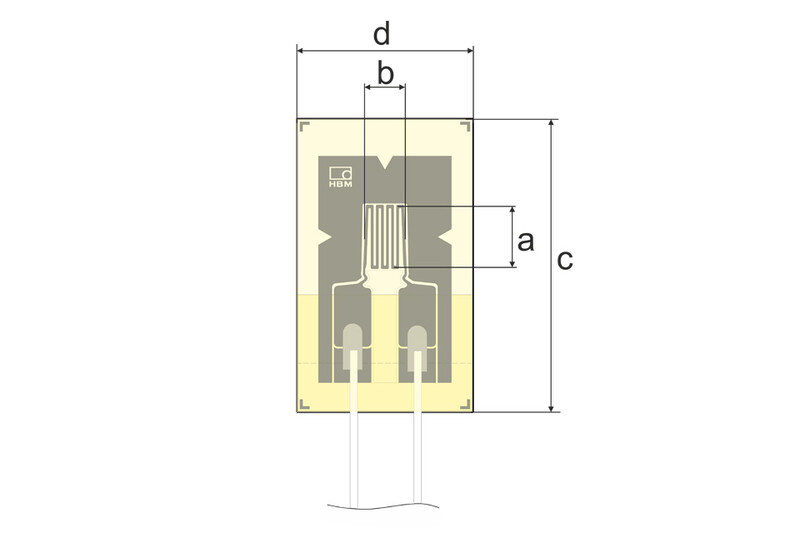

- Measuring grids: 3 mm
Excellent zero signal stability with changing moisture.
Highly resistive
- 1 m stranded connection wire with Fluoropolymer insulation
- 2-wire or 4-wire circuit alternatively
Wire material is resistant against environmental threats and electrical leakage.
