Description
- HBK accuracy class: 0.5
- Nominal (rated) measurement ranges: 150 µm/m
- Outputs: 1,5 mV/V, 0… 10 V, or 4… 20 mA, depending on variant
- Degree of protection: up to IP68
Economic measurements
- Inexpensive yet reliable – especially when measuring large forces

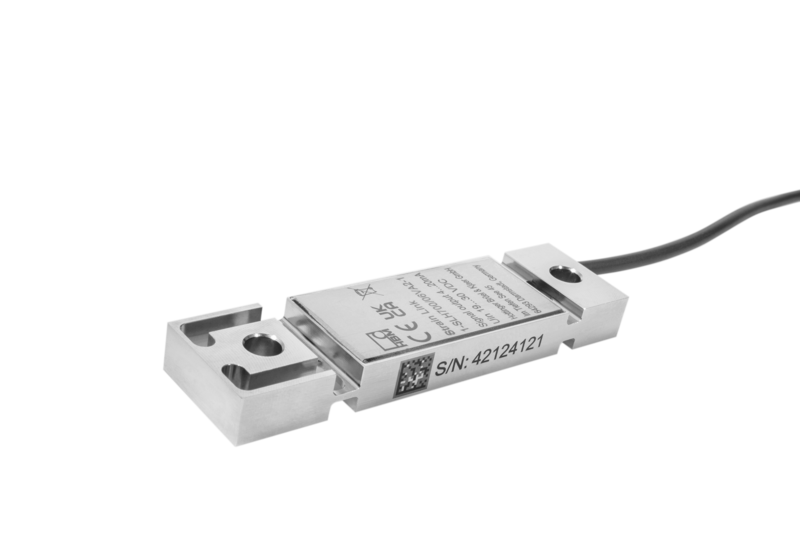

- The SLH700VA with integrated electronics and standard analogue outputs provides a particularly cost-efficient solution
Cost advantages over other methods of force measurement, especially for large forces.
For monitoring or manufacturing tasks
- Easy mounting with two M6 screws
- Oil resistant and highly flexible cable, suitable for drag chains
- High degree of protection (IP68); also suitable for permanent outdoor use
Robust and long-lasting force measurement even in unfavourable environmental conditions.
The complete package
- HBK supplies the sensors required for the calibration of the SLH700 strain link
- A service team can calibrate the measurement chain for you if required
Contact us to discuss a comprehensive and cost-effective solution for your measurement task.
Flexible for different applications
- Extremely low restoring force
- No impact on the stiffness of the system
The SLH700 is suitable for use on both large and delicate structures.
