Description
The PW15 series load cells have uniform footprint but different characteristics. They enable scales to be designed in a flexible design, thus enabling a wide range of applications. With their different specifications, they are ideal for the food, packaging and chemical industries as well as for trade and agriculture – and ideal for belt, floor, table and loading scales as well as filling and production systems.

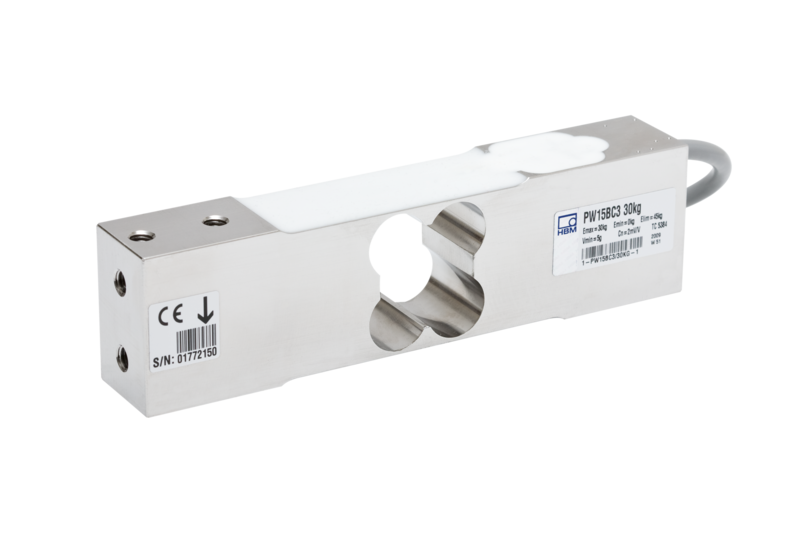

The PW15B single point load cell is made of stainless steel and can therefore be used in a wide range of ambient conditions. It is also available in various explosion-proof versions, as well as with balanced output for optimum use in parallel-connected scales.
Universally applicable
- Enabling flexible scale designs with wide applicability
- Compensated corner load error (OIML R76)
- 6-wire circuit for high signal stability
- High EMC resistance
- Tested quality with test report (OIML R60)
- For multi-range applications with limited ranges
Ideal solution with a broad range of applications in many areas
Easy to customize
- Very large range of available maximum capacities from 7.5 to 200 kg
- Easy to integrate with compact design
- Body made of stainless steel
- Rugged to protection class IP67
- Explosion-proof versions available
- Specially protected cables and plugs
- Suitable for parallel connection with balanced signal output
Optimally configurable for application-oriented scale construction and design.
Special accessories
- Various cable lengths available
Suitable connection cables for different applications and ambient conditions. Allows immediate use of the load cell.
