Description

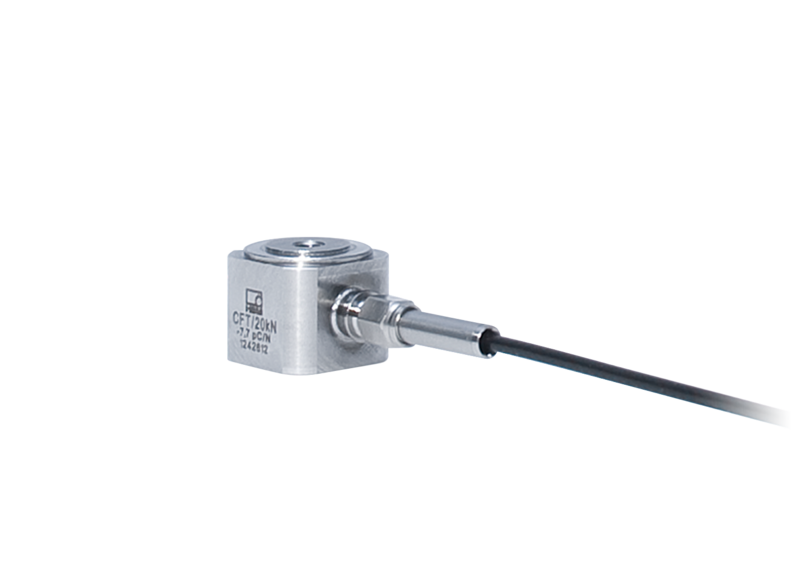

The CFT piezoelectric force transducers are pre-stressed and calibrated. One special feature of the sensors is that gallium phosphate is used as the sensor material, Enabling the achievement of twice the sensitivity, compared with conventional piezoelectric force transducers that use quartz.
The extremely small sensors are completely manufactured from stainless steel materials and offer the advantages that are typical to the piezoelectric principle: They allow measuring forces of a few Newtons, also under a high initial load, as well as measuring very fast force variations. The force transducers have displacements of only a few µm.
- Capacities: 5 kN to 20 kN
- HBK accuracy class: 1
- Calibrated measuring ranges: 20 % and 100 %
Reliable measurement results and high dynamics
- Stainless steel materials, IP65 degree of protection
- Low-drift quality
- High EMC performance owing to the design principle
- High stiffness that is typical for the piezoelectric principle due to a high natural frequency
High measuring dynamics and reliable results even under adverse conditions
Easy integration
- Thread connections on both sides
- Pre-stressed and calibrated
- Standard mechanical connections making the sensors easy to integrate
- Practical accessories available: charge amplifiers, summing units, and cables
Reliable application due to a well-conceived design and tested accessories from HBK
Wide measuring range
- Twice the sensitivity can be achieved compared with quartz-based sensors due to the use of gallium phosphate: double output signal with the same measuring force
- Excellent mechanical quality and outstanding linearity characteristics
Reliable measurement of minimal forces while providing a wide measuring range
