Description

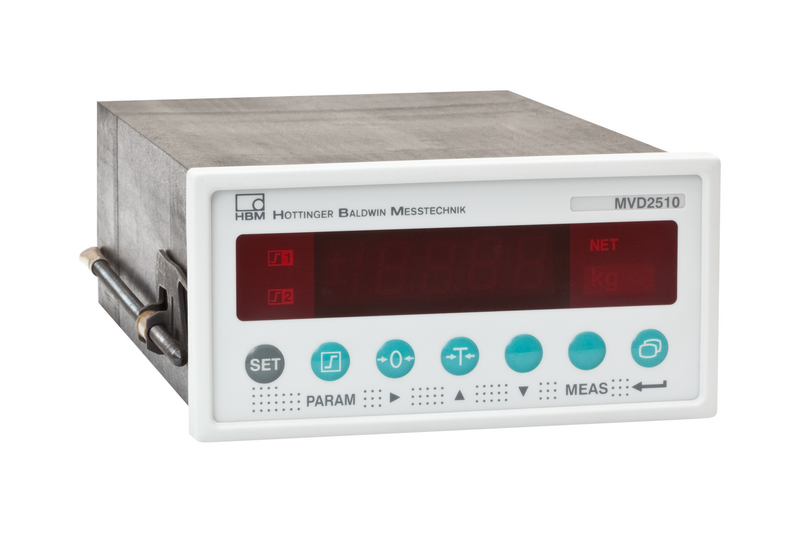

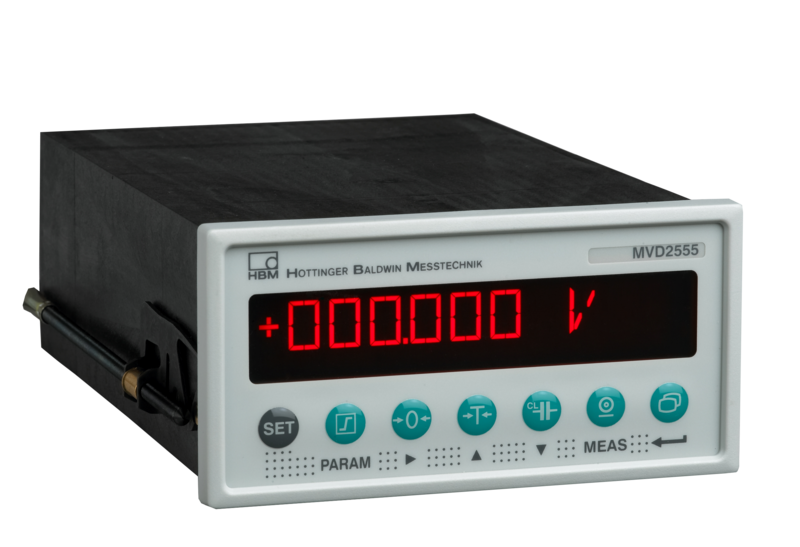

The MVD2555 and MVD2510 measuring amplifiers are ideally suited to be used in industrial measurements. Their robust, dust-protected housing has been optimized for panel mounting. The amplifiers feature Min/Max memories, limit value switches, and different signal types to ensure maximum reliability in their applications. Both devices come with a freely scalable analog output that allows fast adaptation to individual measurement conditions and guarantees high-quality results.
- Accuracy class: 0.1
- Housing dimensions: 153 x 72 x 212 mm (W x H x D)
- Degree of protection: IP51 (front)
High-Quality Results
- Accurate measurement due to 0.1 accuracy class
- Clear results due to the presence of a digital filter that can be adjusted in multiple steps
- High signal quality thanks to a low-drift design
- High electromagnetic compatibility
Accurate measurement results due to a digital filter, a low-drift design, and high electromagnetic compatibility
Universal Application
- Easy configuration based on an integrated parameter memory (formulations)
- Freely scalable analog output (±10 V, ±20 mA, 4-20 mA)
- Integrated peak-value memory
- Multilingual, password-protected setup menu for device parameterization
Wide field of applications due to parameter memory and four limit value switches
Safe Use
- Portable housing with carrying handle that also serves as a stand
- Easy-to-read, 10-digit, red LED display
- Intuitive control through robust membrane keypad with seven button elements
- Integrated diagnostics, error, and alarm signals
Reliable use in industrial applications due to alarm signals and an easy-to-read LED display
