Description

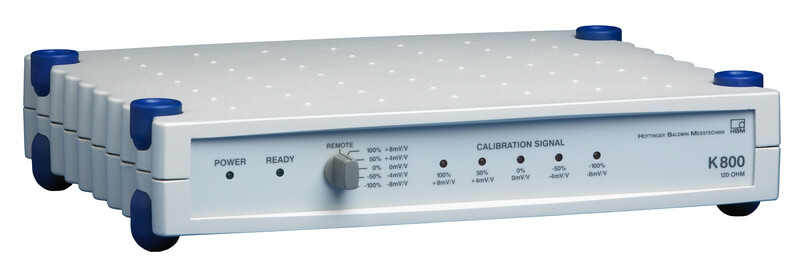

The K800 calibration unit for strain gage quarter bridges launched by HBK can calibrate eight channels simultaneously. The device is particularly useful for multi-channel measuring amplifiers, such as HBK’s MGCplus, that must be calibrated regularly to ensure accuracy.
Multi-channel amplifiers are used for complex measurement applications needing higher channel counts, such as in applications ranging from vehicle road tests through to experimental stress analysis using single strain gages in the aerospace industry.
Key Features
- Quarter-bridge simulations (for calibrating the AP814 and AP815 of the MGCplus system)
- Parallel control of all eight calibration signals
- Four versions: 120 Ohm, 350 Ohm, 700 Ohm or 1000 Ohm calibration resistance
- Computer control or manual operation
- Status display via LEDs
