Description

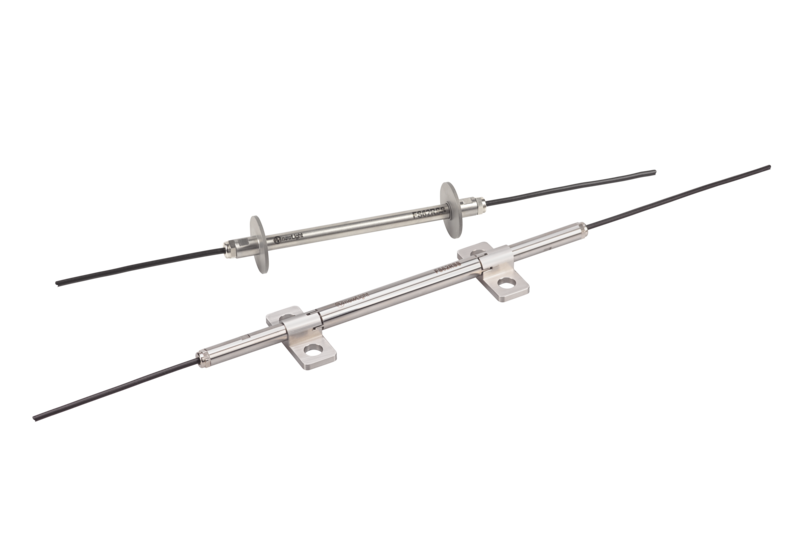

FS62RSS – Rugged Strain Sensor
- Embedded version for concrete structures with deformations still below the serviceability limit state, with a measurement range of ±2500µm/m. This embedded strain sensor is delivered with holes on the anchoring discs to support the installation, namely when the sensor is to be kept in between rebars, measuring strain on concrete. An installation accessory is also available to support on installations where the sensor is to be kept next to and aligned with the reinforcing rebars.
- Surface mount version for all types of drillable materials, with a measurement range of ±5000µm/m
- For temperature corrected measurements, consider using the FS63RTS temperature sensor
