Description

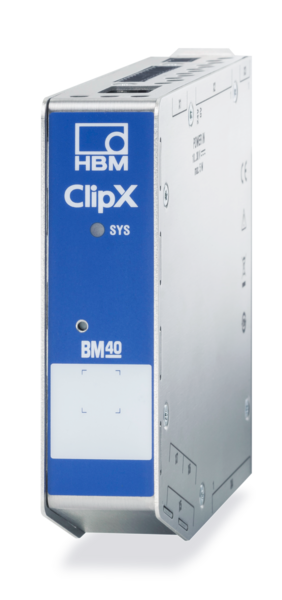

With an accuracy class of 0.01 and an integrated calibration certificate, the interference-proof signal conditioner ClipX is setting new standards in industrial process control. ClipX adapts to your measurement task, regardless of whether it is used with single- or multiple-channel applications, in manufacturing machines, in test benches or for production monitoring. Owing to the Plug and Play principle, up to six devices can be plugged simultaneously in a modular setup and the measured data can be pre-calculated. Unlike conventional measuring signal conditioners, ClipX does not require a separate head module for direct data processing.
ClipX provides all the latest automation interfaces to perfectly integrate the device into comprehensive control concepts. A particular feature is the intuitive web interface that also enables remote operation, parameterization, and diagnosis.
- Accuracy class: 0.01
- Measurement inputs: Full-bridge and half-bridge strain gauges, piezoresistive transducer, potentiometer, Pt100, current, and voltage
- Interfaces: PROFINET, EtherCAT®,PROFIBUS, Ethernet/IP™*, Modbus-TCP, analog (V/mA,) digital-I/O, and Ethernet (TCP/IP)
- IIoT (Industrial Internet of Things): Remote diagnosis, health monitoring and web integration; integrated OPC-UA server
Precise and interference-proof
- Fast and digital signal conditioning for force sensors, load cells, torque sensors, pressure transducers, as well as temperature and standardized signals (current/voltage)
- Guaranteed measurement accuracy, even in harsh industrial environments with electrical interferences
- Full traceability owing to EN10204-compliant calibration records that are directly stored in the device
- In combination with the SD01A Zener barrier , sensors can also be operated as intrinsically safe devices in potentially explosive atmospheres, measurement circuit type (Ex II (1) GD, [EEx ia]IIC).
Reliable results and trustworthy acquisition of mechanical and electrical quantities in industrial environments
Faster industrial processes
- A high sample rate and high bandwidth facilitate for easy use in automation environments
- Quick setup and diagnosis using the display on the device and the intuitive web interface
- Full support of TEDS (Transducer Electronic Data Sheet)

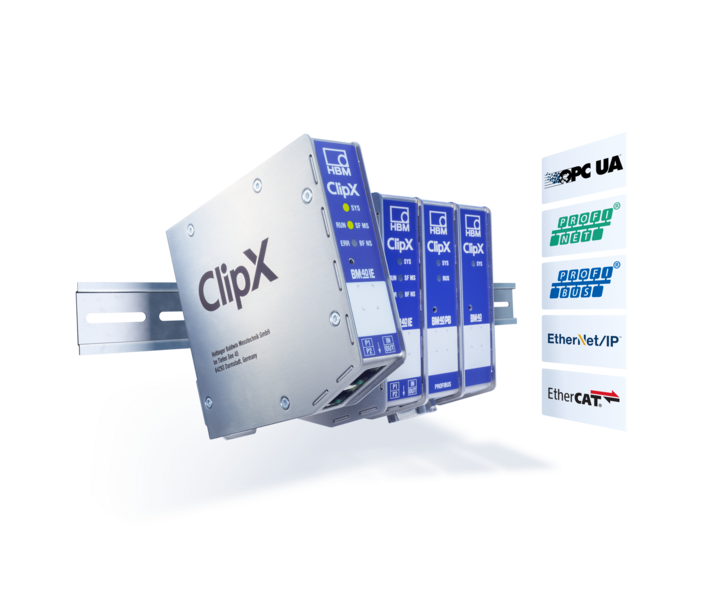

- ClipX-bus allows transmission and computation of measured values between up to 6 devices
- Interfaces: PROFINET, EtherCAT®, PROFIBUS, Ethernet/IP™, Modbus-TCP, analog (V/mA,) digital-I/O, Ethernet (TCP/IP)
- Integrated OPC-UA server
Easy setup with integrated web interface, time- and cost-saving remote diagnosis, and automated channel parameterization of the measurement chain (TEDS) or the integrated Adjustment Assistant that guides the user step by step
Efficient and profitable
- Individual system setup and compact design
- Easy and safe assembly without tools
- Transmission of measured values in millisecond intervals using the ClipX-bus
- Mathematical and technological calculation channels (Smart Functions) allow signal conditioning/analysis and easy parameterization
- Individually configurable input/output signals and fieldbus interfaces
- All the device settings can be individually configured via the Ethernet and fieldbus interfaces and the internal object directory
- Open to integration with many other software programs: LabVIEW, Visual Studio .NET under Windows as well as Linux
Unbeatable price-to-performance ratio and a future-proof investment because of the open automation standards
