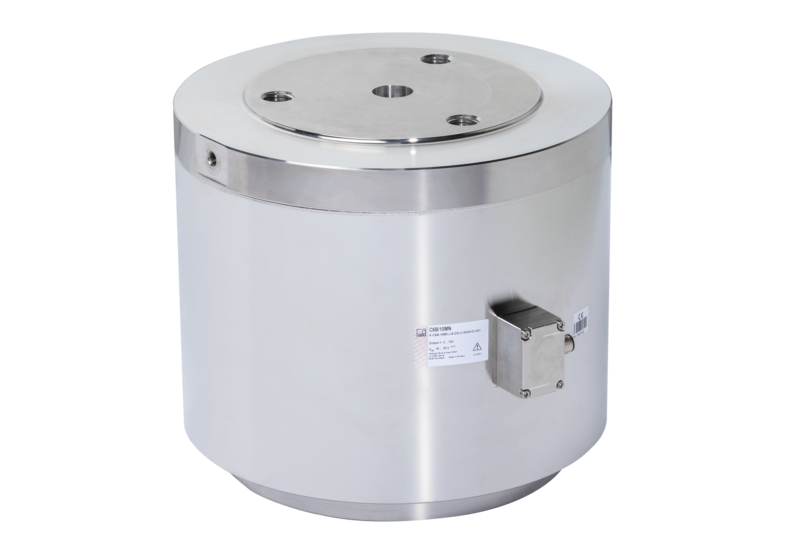

Description
The C6B force transducers are based on compression bars, a design that is well suited for very large forces and stands for small displacements – ideal for highly dynamic measurements, for example, in impact tests or fast joining processes.

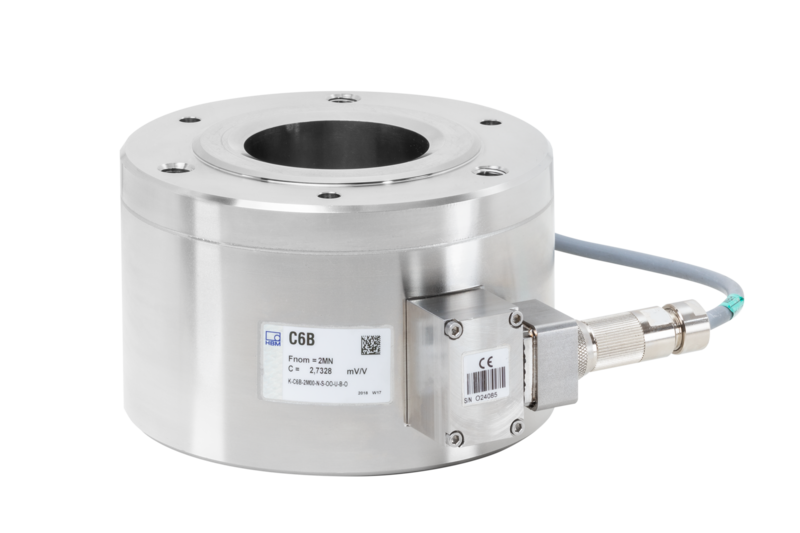

The C6B series is characterized by its excellent price-to-performance ratio, which is especially true for the variants with integrated electronics. The sensors are completely made of stainless steel, hermetically sealed, and have a high degree of protection (IP68). An extensive range of options allows for adaptation to the measurement task at hand. The versions up to 2 MN have an internal bore. This has proven particularly useful in anchor or rope tension monitoring.
- HBM accuracy class: 0.5
- Nominal (rated) measurement ranges: 200 kN to 10 MN
- Outputs: 2 mV/V, 0… 10 V, or 4… 20 mA, as required
- Degree of protection: up to IP68
Our tips:

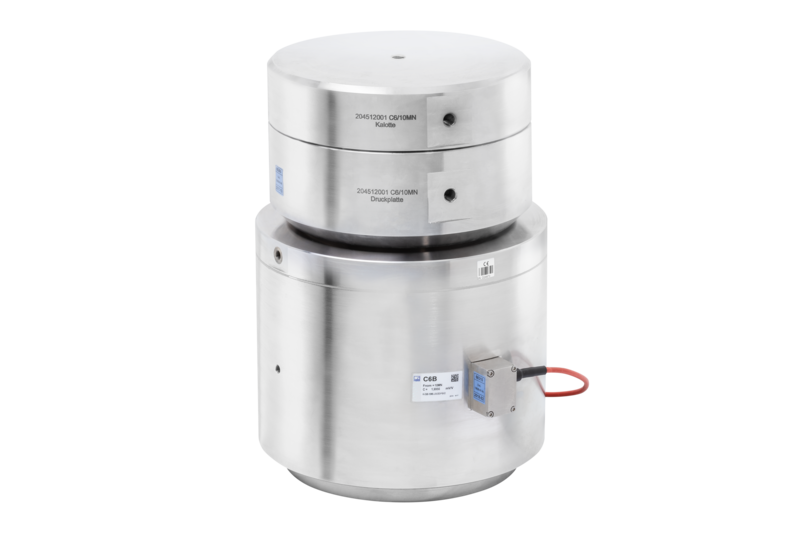

- Order the C6B complete with its force applications parts. In this case, the sensor and the force application parts are calibrated together. Benefit from increased accuracy in your application!
- New: Now also available with an integrated amplifier. Benefit from efficiency, absolute reliability, and easy setup!
Cost-effective measurement of large forces
- Nominal (rated) forces up to 10 MN
- For static and dynamic measurements
- Exceptionally attractive price-to-performance ratio
- An internal bore facilitates the use of a fold-back arm (up to 2 MN)
Cost-effective, easy-to-use measurement equipment for many applications.
Adaptable to your application
- Output signal: mV/V, 0 – 10 V, or 4 – 20 mA
- Many options: fixed cable, mounted plugs, robust plug protection, and TEDS
- Can be mounted both horizontally and over head
- Complete calibration with loading fittings is possible on request
Efficient: adaptable to the application and instantly ready for use.
Robust and dynamic
- Hermetically sealed housing made of stainless steel materials
- IP68 degree of protection (models with a fixed cable)
- EMC-tested in compliance with the IEC standard
- Tested for vibration and shock resistance
Long-life technology and reliable measurement results.
