Description

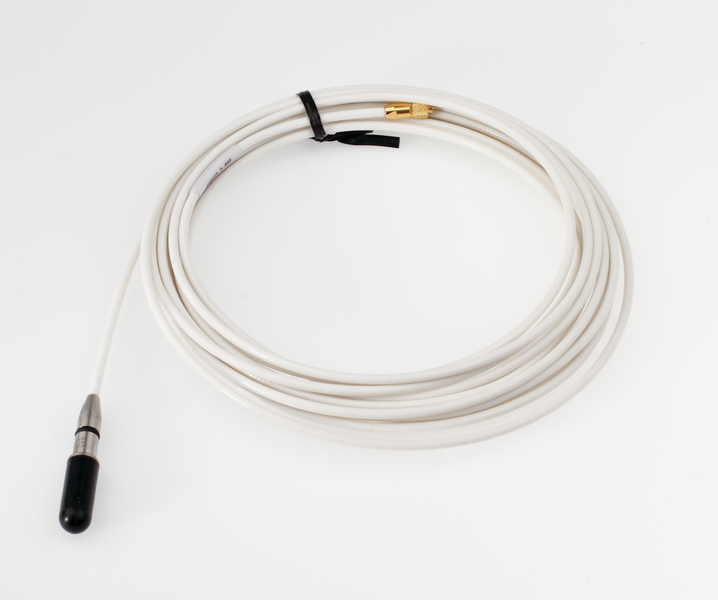

Miniature Hydrophone Type 8103 is designed for high-frequency laboratory and industrial use and is supplied with an integral 6m cable terminated 10-32 unf microdot plug.
- Calibration reference standards
- Ultrasonic measurements in liquids
- Cavitation measurements
- Laboratory/industrial measurements in liquids and gases
- As underwater projectors (8103, 8104, and 8105)
- Noise measurements in humid and polluted atmospheres
Miniature hydrophone Type 8103 is a small, high-sensitivity hydrophone for absolute sound measurements over the frequency range 0.1Hz to 180 kHz, with a receiving sensitivity of −211 dB re 1V/μPa. The high sensitivity and good all-round characteristics, make it ideal for laboratory, industrial, and educational use.
The high-frequency response of this hydrophone becomes especially valuable when making acoustic investigations of marine animals, and for measuring pressure-distribution patterns in ultrasonic-cleaning baths.
