Description

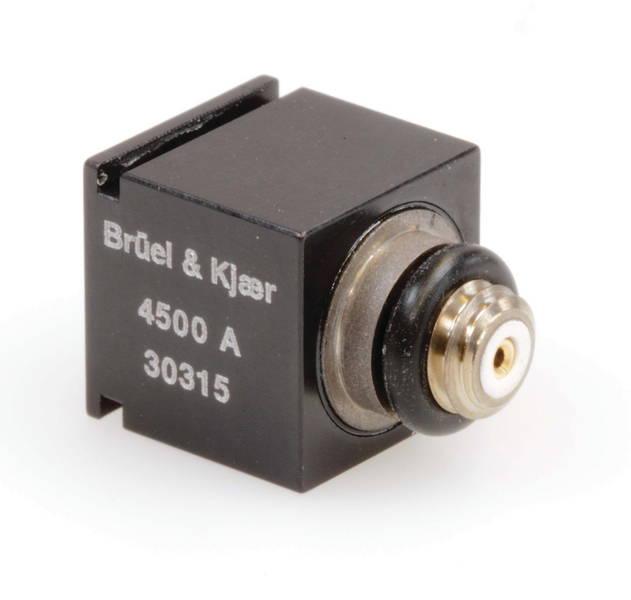

Cubic piezoelectric ThetaShear accelerometerswith low sensitivity to extraneous environmental effects, which is achieved through the ThetaShear design. The accelerometers feature a 10 – 32 UNF connector positioned on the top surface, which is perpendicular to its main axis.
The piezoelectric element used is the PZ 23 lead zirconate titanate element. The housing is aluminium.
USE SCENARIOS
- General purpose multi-axis vibration and shock measurements on low-mass structures and in confined spaces
- Excellent for applications where a large number of accelerometers are required
