Description

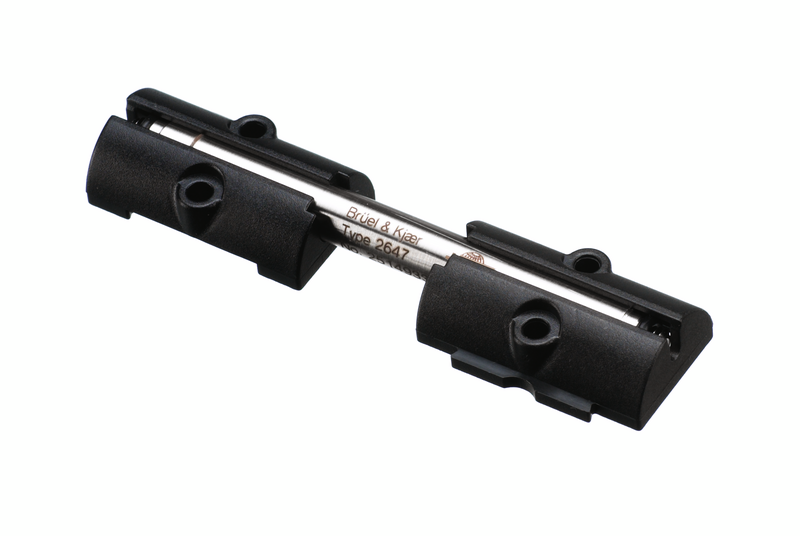

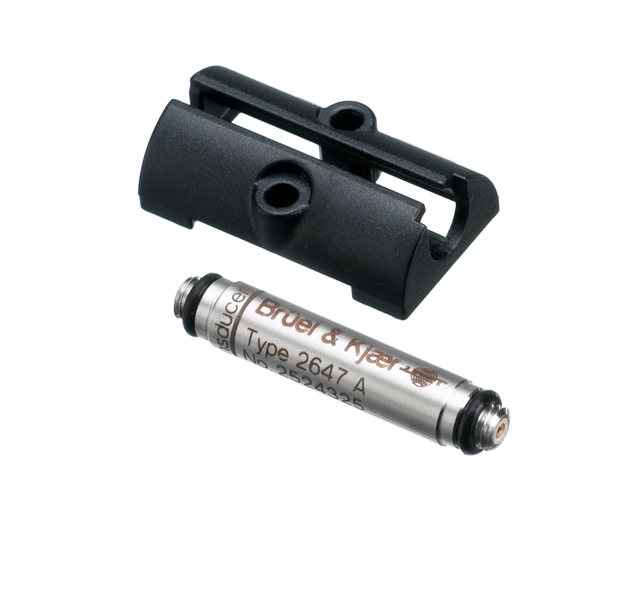

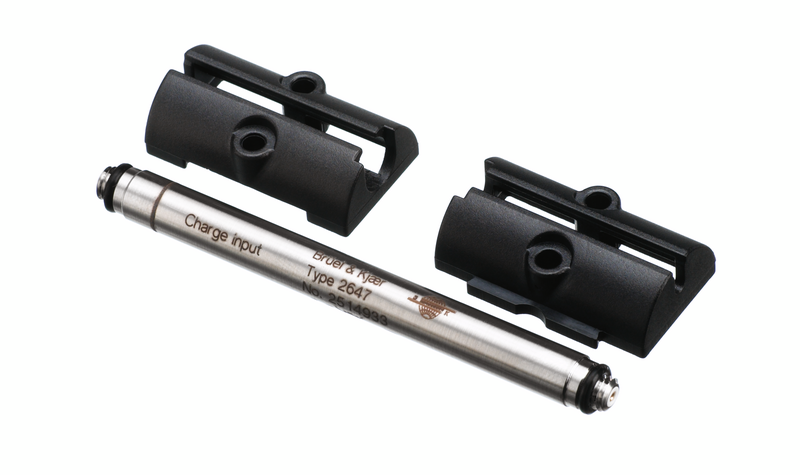

Types 2647‐A, ‐B, ‐C, ‐D (1,2,3 and 4) and -E are charge to CCLD converters. They are designed to connect charge transducers to CCLD inputs. They have various fixed sensitivities to adapt a wide range of charge transducers to the vibration levels being measured, thereby reducing the amount of instruments in your instrument pool.
Types 2647-A, B and C support IEEE 1451.4 ”A Smart Transducer Interface for Sensors and Actuators” and contain a unique identification code and TEDS for quick identification and setup, as well as access to individual production and calibration data.
USE SCENARIOS
- Enables charge transducers to be used on CCLD power supplies. Compatible with ICP®, ISOTRON®, PIEZOTRON®, CCLD, etc.
- May also be used with any CCLD conditioning amplifier that does not support IEEE 1451.4
- Fixed sensitivity:- 2647-A, 2647-D, 1 mV/pC- 2647-B, 10 mV/pC– 2647-C, 0.1 mV/pC
- Supports “Smart Transducer Interface” IEEE 1451.4 containing TEDS
