Description

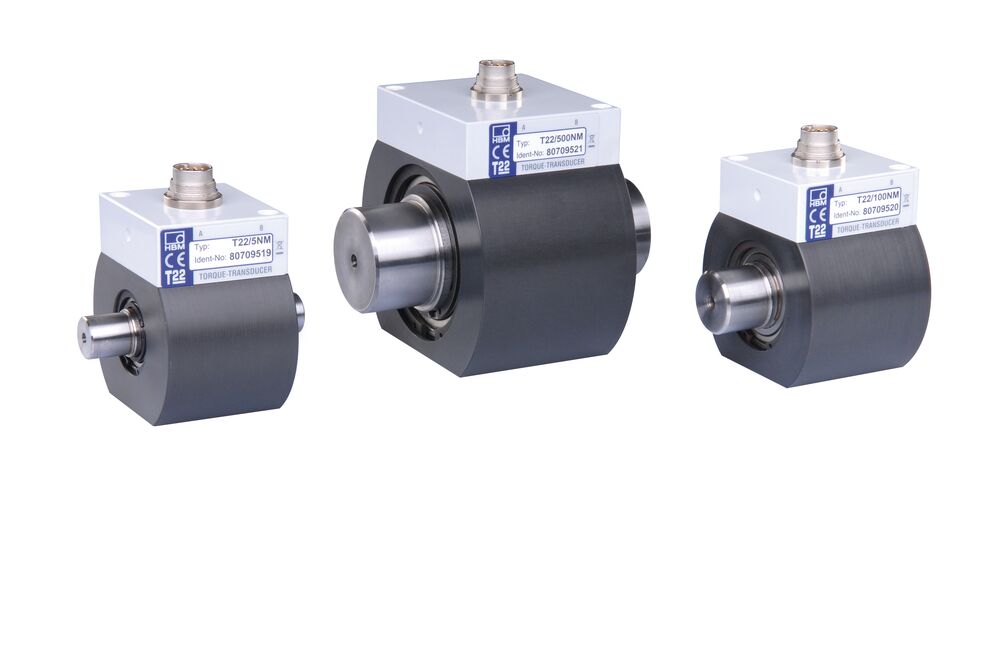

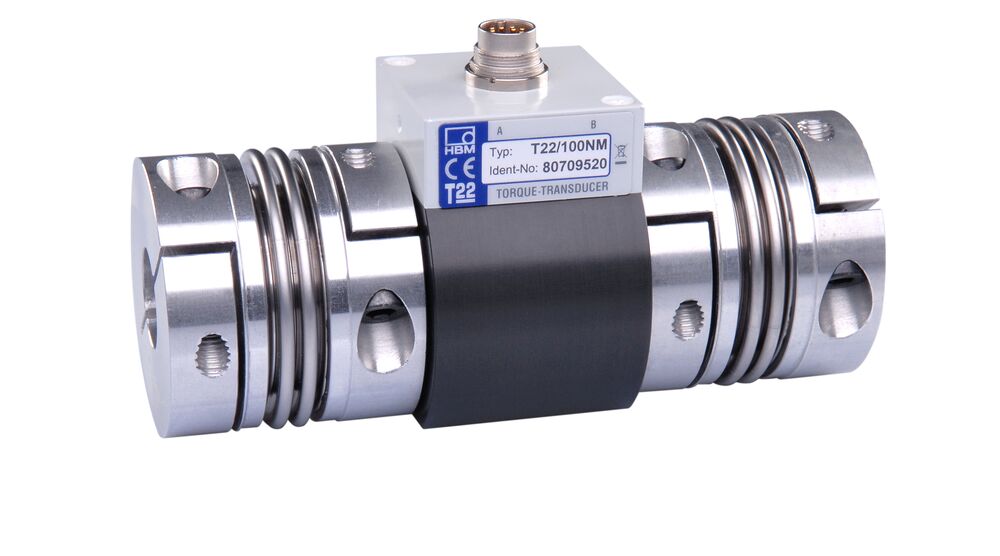

The strain gauge technology-based T22 torque transducer uses non-contacting transmission technology to measure torque, and provides measurement ranges from 0-0.5 Nm up to 0-2 kNm. Its compact design makes it the ideal choice for dynamic and static torque measurement on non-rotating as well as rotating components. Therefore, the T22 is used, for example, in laboratories and end-of-line test benches in the automotive sector and production technology. Due to its two analog outputs (current and voltage), the torque sensor can be easily connected to programmable logic controllers (PLC) and thus, is ideally suited for use in production and process monitoring.
- HBM accuracy class: 0.5
- Nominal (rated) torque: 0.5 Nm to 1 kNm
- Nominal (rated) rotational speed (rpm): up to 20,000
Cost-effective
- No additional amplifier required, due to integrated electronics
- Compact design ensures easy connection, in confined spaces, too
- Maintenance-free operation
Cost-effective solution which takes minimal time and reduces cost expenditure and integration effort
Easy integration
- Direct connection to PLC with +/- 5 V and 10 +/- 8 mA analog outputs
- Coupling diameter can be chosen individually
- Non-play friction fit
Easy and fast installation in many applications
