Description

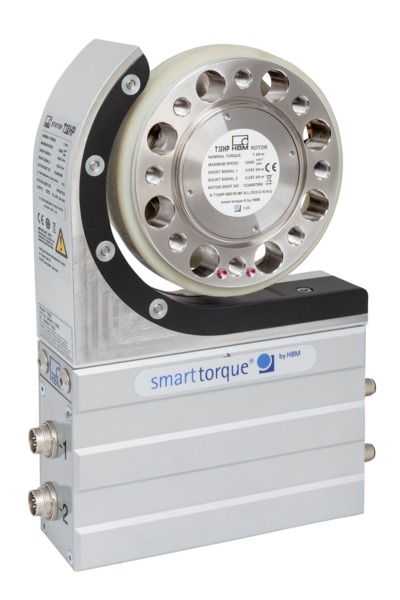

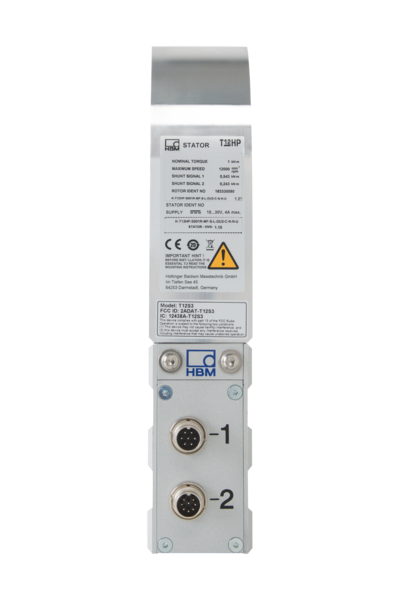

One torque sensor, multiple functions – only T12HP can do this. Its superior basic accuracy guarantees precise values over the entire measurement range. This results in the FlexRange™ capability that only T12HP can provide without the need to switch the measuring range like so called dual range sensors do.
- HBM accuracy class: 0.02
- Nominal (rated) measuring range: 100 Nm to 10 kNm
Now with Even Higher Rotational Speed
T12HP is now available with rotational speed up to 22.000 rpm depending on range for applications requiring higher rotational speed, e.g. electric mobility testing.
Precise
- Minimal linearity deviation, including hysteresis of 0.007 %
- Superior temperature stability with TC0 of 0.005 % / 10 K
- FlexRange™ capability – no change in measurement range necessary
Benefit of superior basic accuracy thanks to FlexRange™ capability, that guarantees precisely measured values over the entire measurement range.
Safe
- High bandwidth
- Mechanical limit value monitoring
- Diagnosis of the measurement process
- Integrated temperature measurement
Reduction of down time resulting in effective cost savings.
Flexible
- CAN, PROFIBUS, EtherCAT and PROFINET for easy integration with different test bench concepts
- Measurement ranges from 100 Nm to 10 kNm
- Optional: Rotational speed measuring system with reference pulse for acquiring the absolute rotor position
Reliable measured data of highest quality and resolution.
