Description

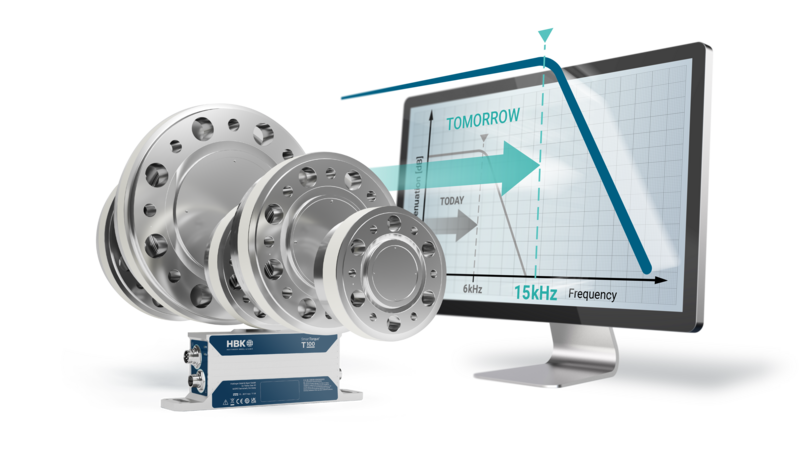

Engineered for cutting-edge performance, the T100-series features an impressive signal bandwidth of up to 15 kHz, unlocking new levels of measurement insight. This enables deeper exploration in R&D and significantly enhances production yield.
- HBK Accuracy Class: 0.03
- Nominal torque: 50 N·m to 10 kN·m
- Nominal rotational speed: up to 25,000 min-1
- Speed measurement: ≤ 8192 Impulses/rotation (freely adjustable)
Key Features – T100-Series
Improved Accuracy
With new intelligent compensation for speed and temperature effects, ensures your measurements remain highly accurate under all conditions.

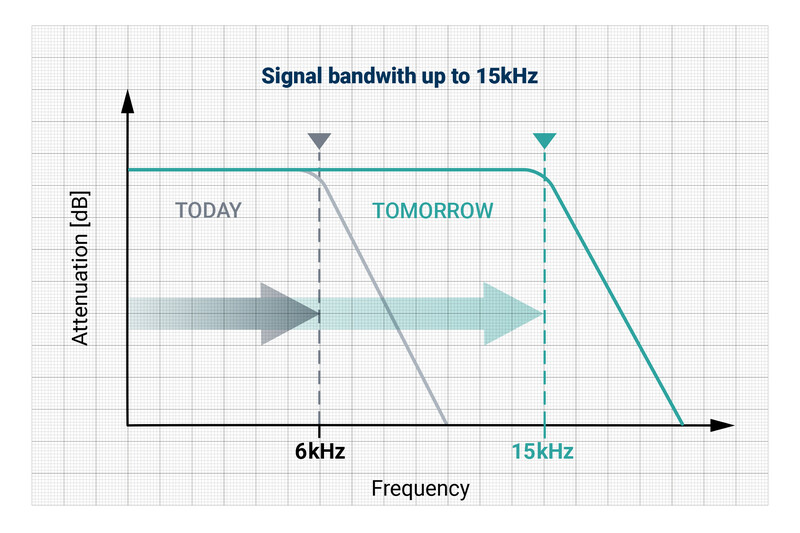

High Bandwidth
An impressive signal bandwidth of up to 15 kHz allows for precise measurement and analysis of even the most highly dynamic torque signals.
Low Noise
Thanks to ultra-low noise performance of the new developed CF (Carrier Frequency)- frontend, even muffled signals can be reliably captured and analyzed. This makes it easier to detect critical nuances in measurements, such as torque ripple in electric motors.

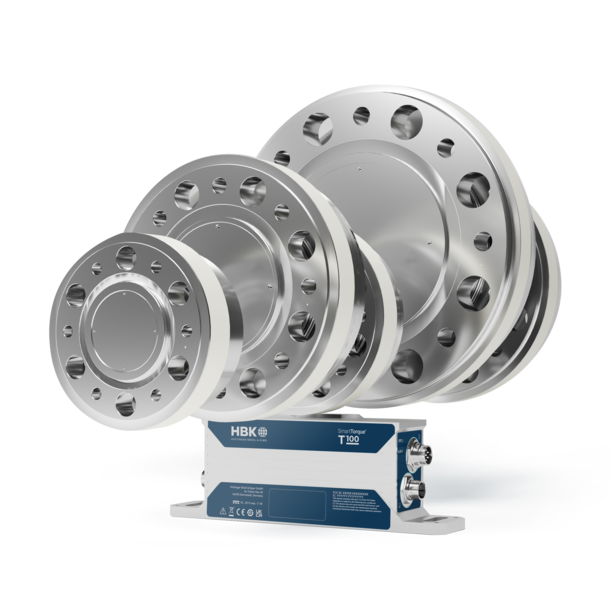

Separate Calibration of Rotor and Stator
The T100’s “one stator fits all” approach allows rotor and stator to be calibrated independently. This dramatically reduces calibration effort when swapping components – saving both time and cost, while maintaining full measurement accuracy.
Key Benefits at a glance:
- Accuracy class 0.03
- One stator fits all – ultimate flexibility
- Signal bandwidth up to 15 kHz
- Unmatched resolution for fine measurements
- Advanced compensation for speed and temperature
